John Ash Imprints - show Yours



To participate in the forum you must log in or register.
Author Previous Topic Topic Next Topic
Pillar Of The Community
Learn More...
United States
2188 Posts
Posted 11/20/2016   8:49 pm  Show Profile Bookmark this topic Add Partime to your friends list  Get a Link to this Message
I picked up a few this weekend. They are normally collected in a Block of Four, but any pairs would also be appreciated. Be sure to keep a lookout for these ... some have significant value.

Scott 150 (ACSC 164zd), 20th Anniversary of Anzac Landing.



Scott 157 (ACSC 169zr), 1935 Opening of Tasmania Submarine Cable.

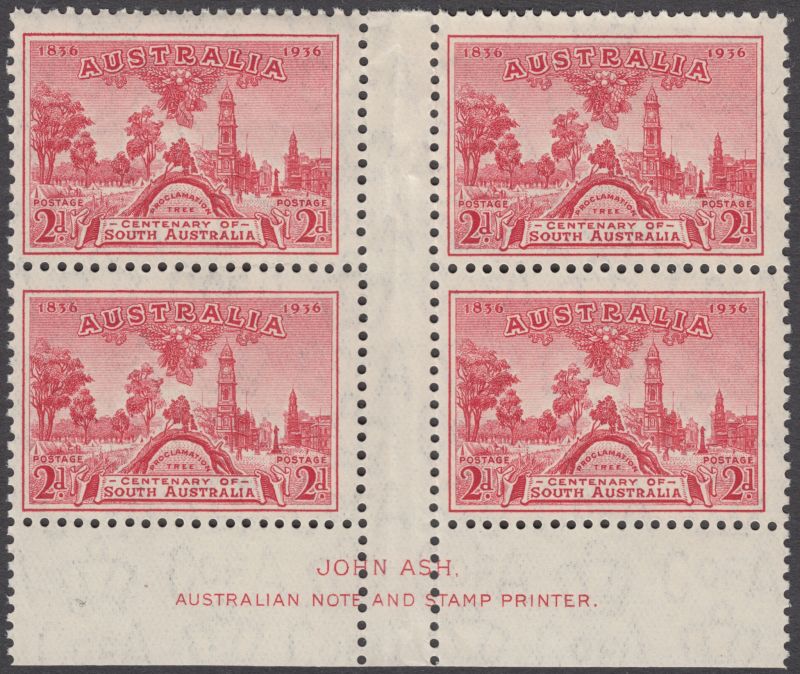

Acott 159 (ACSC 171z), 1936 Centenary of South Australia.

Send note to Staff

Pillar Of The Community
United States
5539 Posts
Posted 11/20/2016   9:48 pm  Show Profile Bookmark this reply Add Cjd to your friends list  Get a Link to this Reply

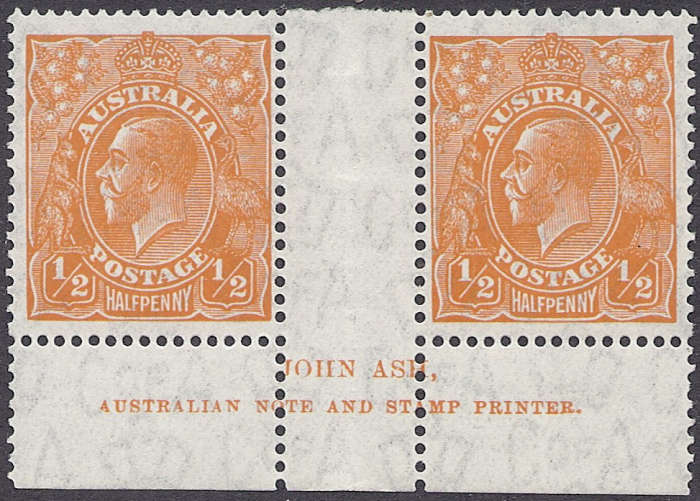

Aussie Al identified this pair several years ago as including 8/L60 lower end of left fraction bar thickened (left stamp), with an N over N imprint.
Send note to Staff  Go to Top of Page
Bedrock Of The Community
Australia
18045 Posts
Posted 11/21/2016   02:47 am  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply
Copyrighted Australian Stamp News April 1930
reproduced with permission.

Avoiding Varieties.

Author : JOHN ASH

(Australian Note and Stamp Printer.)

The educational and artistic sense of a country might almost be read in the history of its stamps, for have we not
got the European and other countries depicting great deeds, art and music? In fact, almost everything of moment
is now recorded by a special issue of stamps, which, all goes to prove that we live in more enlightened times.
My interest in stamp production is to give the Postmaster-General a stamp which, in the first place, will be
Secure against forgery, and, in the second place, of such a quality that it will be a credit to Australia. It would be
idle for me to attempt to justify the appearance from time to time of. "varieties" which are brought to the
public's notice; suffice it to say that every endeavor is made to minimise variation in quality, shade and
perforation.

The philatelic public who read the "A.S.M." (Australian Stamp Monthly...rod) and other magazines, are thereby well informed as to the methods
of making dies, plates and paper, but there are other processes which may interest the reader, and I propose to
dwell for the present on these small but essential details, which are really the crux of good stamp production. I
feel sure you will at least recognise how very important is this preliminary work, and the care which is required
to ensure freedom from "varieties."

The machines used for the typographical printing of stamps are similar to those in use for fine art. printing,
except that they are specially strengthened for long and constant running, which is essential, in producing 800
million stamps a year for the Commonwealth.

All being ready, the plates are issued to the machinist from the strongroom. After the plate is duly fixed down
on the machine, "blind" impressions (without the plate being inked) are taken on colored paper, the weak places
in the impression being interlaid with paper under the plate until a uniform and even impression on all stamps is
secured. This, however, is only the beginning of what is termed "make ready." Further impressions are taken
with the plate inked in order to test the perforation. Great care has to be exercised in getting the impression or
printing cylinder to its correct circumference, even one thin sheet of paper too many on the cylinder will cause a
stretch on the gummed paper, materially affecting the perforation of the sheet; the larger the cylinder, the greater
the difficulty.

During the process of "making ready," a trial sheet is sent to the engraver, so that he can bring his eagle eye to
bear on the faults in the, plate. Every stamp is minutely examined, and the fault indicated on the proof before
the engraver orders the plate to be returned for correction. It is; .during this examination that he discovers the
"varieties" which have crept in during the previous printing. Great care is required to see that adjustments are
made which will effectively remove the blemishes from the stamp. Sometimes the plate is in the engraver's
hands for two or three days at a time, but the printer is not idle during this period. Much skill is required to
bring out the light and shade on each stamp and to ensure that there are no broken lines. Consequently, the
machinist takes this opportunity to perform important work, technically called "cutting the overlay," that is,
building up on a printed sheet of stamps to bring out the solid and to lighten the shaded parts of the stamp, and
in assisting the engraving by reducing the high lights in the face and other parts of the stamp, thus having the
effect of putting life into the picture and making it more pleasing to the eye.

The Australian stamps, as most people know, are printed on sheets of watermarked gummed paper, 480 set on.
It is no sinecure to be able to get the whole of the stamps to appear with the same even color on every sheet
which is passed through the machine. How many people realise that this "making ready" process occupies about
a week for each value! Nevertheless this is a fact, but any shirking of this operation only results in trouble
during the production period. It is then that, "making ready" being complete, the machinist "prepares his
rollers," also seeing that the ink flows evenly from the fountain. This is important in order to maintain a good
even color. The machine is then tested with some colored trial sheets of paper to see that the printing is right,
particular attention being taken to see that there are no broken lines.

Everything being ready for printing, one ream (500 sheets) of paper is put up on the feeding table of the
machine, care being taken to see that the watermark is the right way up. I may say that each machine crew
includes a girl who is solely responsible for seeing that the watermark is the correct way up; it also is her duty to
mark the edges of the paper to show how they are to be laid into the machine. Specially selected girls are put on
this work to minimise errors. Paper makers, being human, are not infallible, but every error is reported to the
makers, the checking slip also being returned for identification purposes. Each operator signs the slip which
follows the work through the department.

The troubles of the machinist begin when he starts printing; particularly is this the case during the summer. He
has to contend with the hot north wind, when the paper on exposure curls up like a walking-stick, and, for the
same reason, it is almost impossible to get a sheet through the perforating machines. In winter, the printing
room temperature can be adjusted, as each machine is fitted with an arrangement which heats up the printing
ink and the plate, thus ensuring evenness of color, and regularity of production. Care has to be taken to see that
the temperature is as nearly uniform as possible, as variations in temperature affect the product. Mild, damp
days are the best for stamp production; it is then that the composition rollers are sharp and "tacky," picking up
the color cleanly, and depositing it uniformly all over the plate.

During the very hot days of Dcember, January and February, it is customary to have all the window blinds
drawn, and the floor frequently watered so as to minimise the bad effect of the heat, otherwise there could be
many breaks in the continuity of production. It is then the machinist is to be sympathised with, as he takes his
large magnifying glass to examine each stamp, in order to discern the "faults" quickly. This is repeated every
half-hour with frequent interruptions to wipe away the drops of perspiration which fall on the glass.
This then is a picture of the environment of the stamp printer, who is fighting against "varieties" every day of
his life; but from a sense of duty to the public, and pride of craft, he endeavors to keep his end up. Machinists
for this work are born and not made, for not only does it require skill, concentration and keen eyesight, but the
man to be successful must have an interest in his work and be a good judge of color.

When printing is completed, and the ink is sufficiently dry to handle the paper, the sheets of 480 stamps are
handed over to the cutter to split into 240 set size in order that they may be perforated. It is here that paper
stretch is most troublesome, and "varieties" are created. Perforating machines have, however, now been fitted
with micrometer gauges, which can be adjusted with the stretch of the paper, thus minimising the amount of
spoilage.
After perforation, the sheets are again examined for watermark, and then passed on for examination of faults.
The trained eye of the examiner quickly discerns changes in shade of color, or "spots" in the printing or in the
paper. When one thinks of the occasional piece of grit in the latter which sometimes indents the printing plate or
the "making ready," it will be seen the examiner cannot afford to take risks by neglecting her part of the work.
When examination is complete, the work is passed on to the checker, and then on to the packer, who is
responsible for sealing the bundles of sheets, which are now ready for sending to the Post Office.

From the foregoing, it will be seen how important a part the preliminary processes play in eliminating
"varieties," and the care that is essential for purposes of security, for not only has every engraven line to get its
proper value, but the impression as well as the color must be uniform in order to protect the issue and the
philatelist, for to be a "variety" it must also be a "rarity."

Send note to Staff  Go to Top of Page
Edited by rod222 - 11/21/2016 02:53 am
Bedrock Of The Community
Australia
18045 Posts
Posted 11/21/2016   02:56 am  Show Profile Bookmark this reply Add rod222 to your friends list  Get a Link to this Reply

SG 12
(Not mine)

Send note to Staff  Go to Top of Page
Pillar Of The Community
Learn More...
United States
2188 Posts
Posted 11/21/2016   11:08 am  Show Profile Bookmark this reply Add Partime to your friends list  Get a Link to this Reply
Rod222, thank you for the excellent article. It definitely details the amount of care taken to assure high quality, consistent products. I just hoped they missed enough to make their way through to my collection ...
Send note to Staff  Go to Top of Page
Pillar Of The Community
Australia
912 Posts
Posted 11/21/2016   4:19 pm  Show Profile Bookmark this reply Add Aussie Al to your friends list  Get a Link to this Reply
Send note to Staff  Go to Top of Page
Pillar Of The Community
Australia
912 Posts
Posted 11/21/2016   4:32 pm  Show Profile Bookmark this reply Add Aussie Al to your friends list  Get a Link to this Reply
Send note to Staff  Go to Top of Page
Valued Member
Australia
32 Posts
Posted 11/23/2016   05:53 am  Show Profile Bookmark this reply Add Buddahboy to your friends list  Get a Link to this Reply

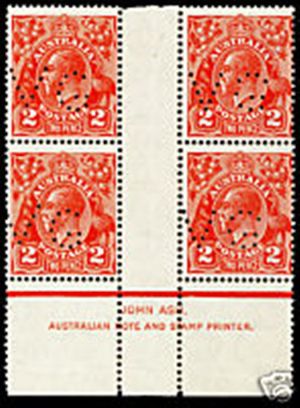

VG Perfin Imprint

Send note to Staff  Go to Top of Page
Valued Member
United States
205 Posts
Posted 11/29/2016   10:55 am  Show Profile Bookmark this reply Add txstamp to your friends list  Get a Link to this Reply
I love that John Ash article. Thanks for posting. That kind of thing serves as bait for the collecting community to go and find whatever got missed.
Send note to Staff  Go to Top of Page
Valued Member
Egypt
204 Posts
Posted 12/31/2016   01:45 am  Show Profile Bookmark this reply Add agmasd56 to your friends list  Get a Link to this Reply
very nice clear stamps I like it
Send note to Staff  Go to Top of Page
Valued Member
Australia
45 Posts
Posted Today  5 Hrs 56 Min ago  Show Profile Bookmark this reply Add Rob041256 to your friends list  Get a Link to this Reply
A scarce FDC of the first issue of the 1938 half-penny wallaroo with dual CDS (circular date stamp) showing the John Ash imprint - printer from 1927-1940, died 1947.

Send note to Staff  Go to Top of Page
Edited by Rob041256 - Today 5 Hrs 55 Min ago
